Terminal workspace

When authorization is completed, a window with the terminal workspace will open

The top left part of the workspace window header contains the following elements:

1. Button to open an Order book window

2. Button to open an Order book window

3. Button to open an Quotes window

4. Button to open windows with PnL, Orders, Transactions, Positions tables

5. Global tab header

Using the tab header, you can perform actions on the global tab:

• drag and drop a tab to create a new independent workspace, either on its own screen or next to an existing workspace. To do this, click and hold down the left mouse button in the tab header area and, without releasing the left mouse button, move the tab to another screen or place it next to the existing workspace;
• rename a tab: to do this, right-click on the tab area and select Rename. A field for entering a new tab name will appear in the tab name area

• create a copy of the global tab. To do this, do a right-click on the tab area and select Create a copy. A full copy of the tab will be created with the parameters, window size, and also with the preservation of the linking settings between windows.

6. Button to create (add) a new global tab

The upper right part of the main window contains the following elements:

1. Indicator for the number of orders and a button to cancel all orders

The indicator displays the number of all orders placed in the terminal (except stop-loss/take-profit). By clicking the cross-shaped button, you will cancel all orders placed in the terminal (except stop-loss/take-profit)

2. Button that indicates the current PnL and opens tables with trading data

The button area displays the current PnL for all closed transactions for the selected period. Clicking on the button will open a window with the PnL, Transactions, Positions, Orders tables

3. Button for indicating the connection status and opening the connection settings

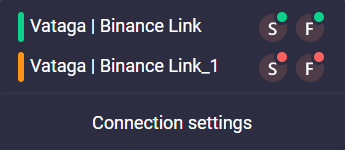

This button displays the connection to the exchange that is currently created in the terminal. Clicking on the button opens up a list of all connections created within one connection to the exchange.

The connection status is also displayed (colored circle in the corner of the icon):

• green circle: the connection is active and all connects are operational (spot and futures);
• yellow circle: there is a problem with one of the connects (spot or futures);
• red circle: the connection is inactive or all connects are disabled (spot and futures);

Connection settings can also be opened by selecting Connection settings item.

4. Button to open global terminal settings

5. Button to open the menu for viewing information and downloading logs

Clicking on the button will open a menu

Menu item	Description
Vataga.terminal 5.4.1.0	Installed version number
Support	Submit a ticket to technical support
Documentation	Go to the Knowledge Base containing the terminal user manual
Logs	Opens the folder with terminal logs. At the request of technical support, you might need to send the log files for the required date from this folder .
About	Information on the terminal
